5/16" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 11131250

M.A. Ford.

5/16" 4-Flute Solid Carbide Square End Mill - M.A. Ford. 11131250

MFR# 11131250Series 111

$45.17List $57.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide

Description

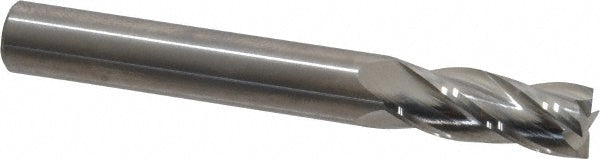

The M.A. Ford. 11131250 is a 5/16 4-flute Solid Carbide (Micrograin) square end mill. 13/16 length of cut, 2-1/2 overall length. Series 111.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in13/16
Length typeRegular
Material gradeMicrograin
Mill diameter in5/16
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
