SGS
5/16" 4-Flute Solid Carbide Square End Mill - SGS 35483
MFR# 35483Series 54
$42.04List $52.99
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
Description

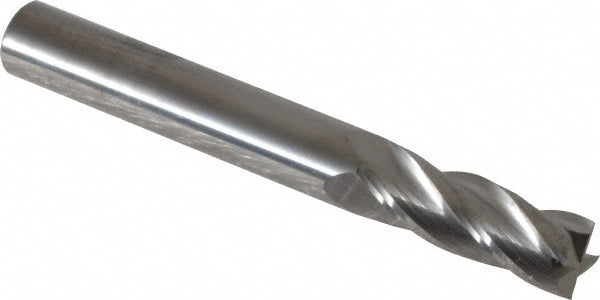

The SGS 35483 is a 5/16 4-flute Solid Carbide square end mill. 13/16 length of cut, 2-1/2 overall length. Series 54.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in13/16
Mill diameter in5/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance+0.00000/-0.00035 in
Variable helixNo
Variable indexNo
