M.A. Ford.
5/8" 3-Flute Solid Carbide Square End Mill - M.A. Ford. 11662500
MFR# 11662500Series 116
$174.36List $223.63
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
Description

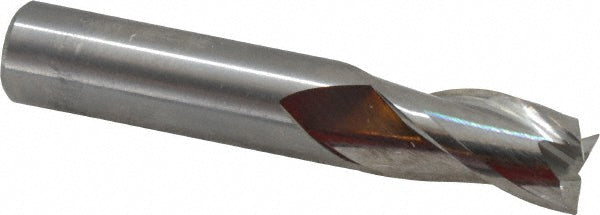

The M.A. Ford. 11662500 is a 5/8 3-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series 116.
Specifications
CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.003 in
Number of flutes3
Overall length in3-1/2
Shank diameter in5/8
Shank typeStraight-Cylindrical
