Iscar

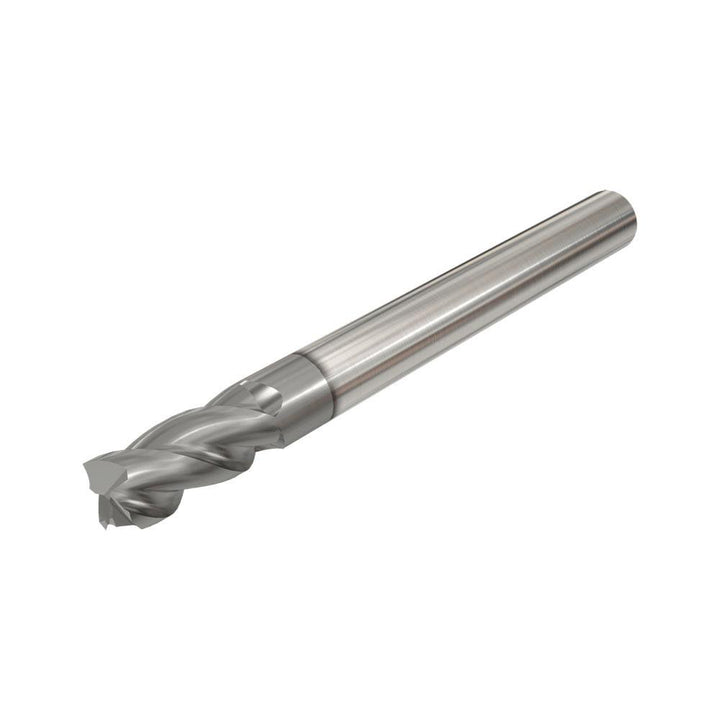

5/8" 3-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620808
MFR# 5620808
$207.71List $266.00
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5620808 is a 5/8 3-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Number of flutes3
Overall length in3-1/2
Shank diameter in5/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
