M.A. Ford.

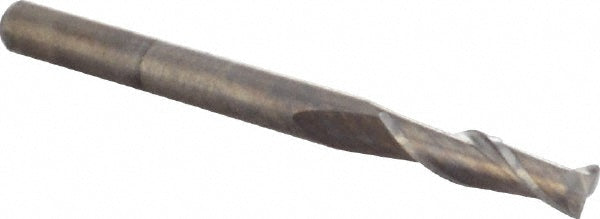

0.1181" 2-Flute Solid Carbide Square End Mill - M.A. Ford. 12111810

MFR# 12111810Series 121

$19.37List $24.84 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 12111810 is a 0.1181 2-flute Solid Carbide (Micrograin) square end mill. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 0.4724 length of cut. Series 121.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coating finish familyBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.4724

Length of cut range0.3000 - 0.5000

Length typeStandard

Material gradeMicrograin

Mill diameter0.1181

Mill diameter tolerance+0.000 to -0.040 mm

Number of flutes2

Overall length (mm)38.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter0.1181

Shank typeStraight

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

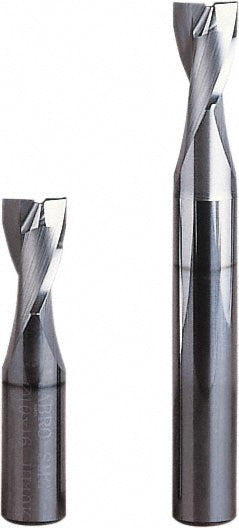

Alternate & equivalent tools
