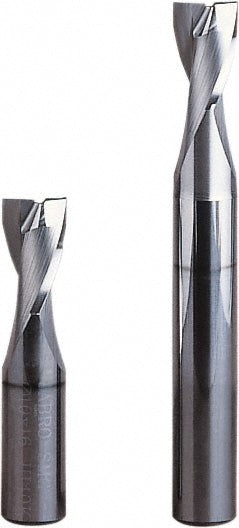

0.1181" 2-Flute Solid Carbide Corner Radius End Mill, HEMI - Seco 00022094

Seco

0.1181" 2-Flute Solid Carbide Corner Radius End Mill, HEMI - Seco 00022094

MFR# 00022094Series JH40

$94.10List $116.63 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingHEMI

Description

The Seco 00022094 is a 0.1181 2-flute Solid Carbide corner radius end mill with a HEMI finish for longer tool life. Suited for non-ferrous metal. Series JH40.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishHEMI
Coolant throughNo
Corner radius0.0039
Corner radius tolerance-0.10 to 0.10 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix styleMedium
Length of cut0.4375
Length typeRegular
Material applicationNon-Ferrous Metal
Material removal typeRoughing
Mill diameter0.1181
Mill diameter tolerance-0.02 to -0.04 mm
Neck diameter0.1140
Number of flutes2
Overall length (mm)40.00
Primary workpiece materialNon-Ferrous Metal
Reach length (mm)8.00
Shank diameter (mm)3.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum (mm)0.01
Variable helixNo
Variable indexNo
