M.A. Ford.

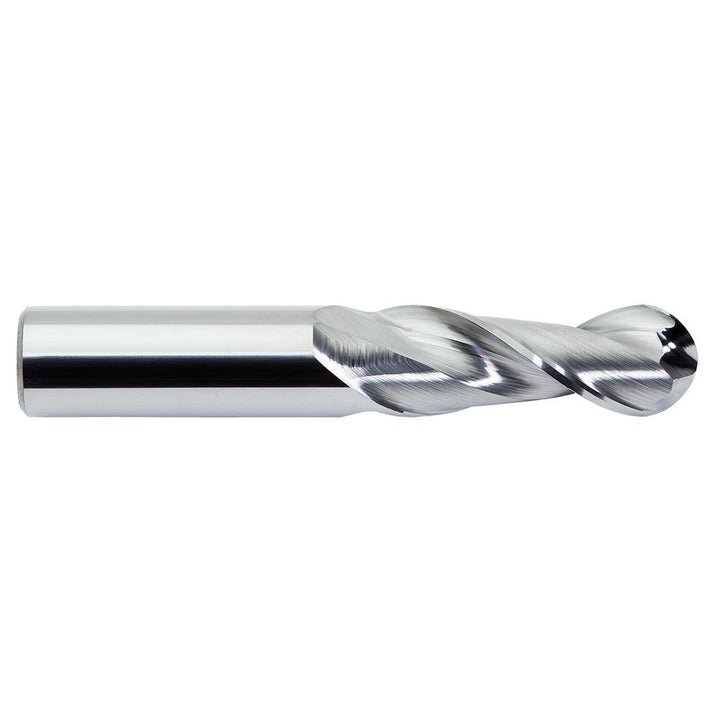

3/16" 2-Flute Solid Carbide Ball End Mill - M.A. Ford. 135B18751

MFR# 135B18751Series 135B

$48.49List $62.19 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The M.A. Ford. 135B18751 is a 3/16 2-flute Solid Carbide ball end mill. Suited for non-ferrous metal. 5/8 length of cut, 2-1/2 overall length. Series 135B.

Specifications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle37

Length of cut in5/8

Length typeRegular

Mill diameter in3/16

Mill diameter tolerance+0.000/0.002 in

Nose radius0.0937

Number of flutes2

Overall length in2-1/2

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/16

Shank diameter toleranceh6

Single or double endSingle

Variable helixNo

Variable indexNo
