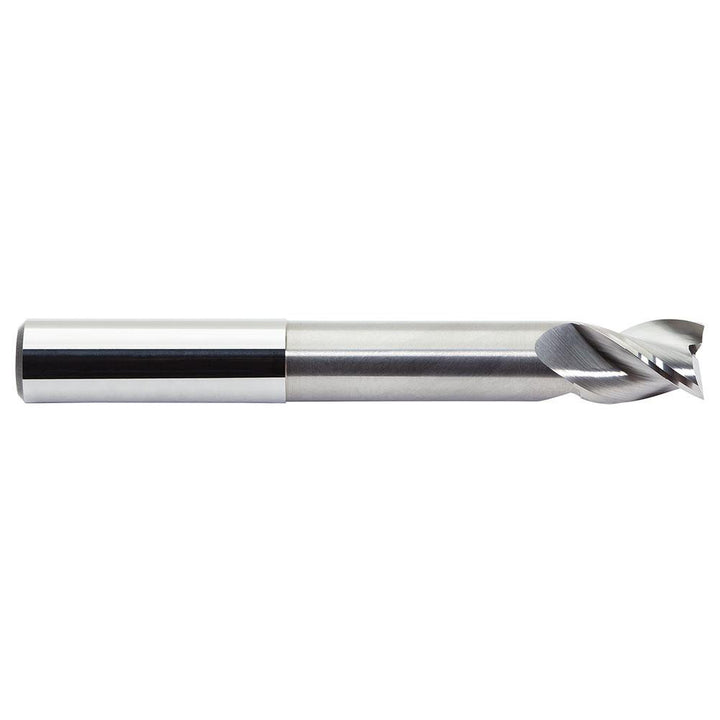

1/2" 3-Flute Solid Carbide Square End Mill, TiB2 - M.A. Ford. 13850011NF

MFR# 13850011NFSeries 138N

$259.99List $333.45 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingTiB2

Description

The M.A. Ford. 13850011NF is a 1/2 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Diboride finish for longer tool life. Suited for non-ferrous metal. 3/4 length of cut, 6 overall length. Series 138N.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiB2

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix angle36

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Material gradeMicrograin

Mill diameter in1/2

Mill diameter tolerance+0.000 to -0.0005 in

Neck length3.375

Number of flutes3

Overall length in6

Primary workpiece materialNon-Ferrous Metal

Reach length3.38

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
