SGS

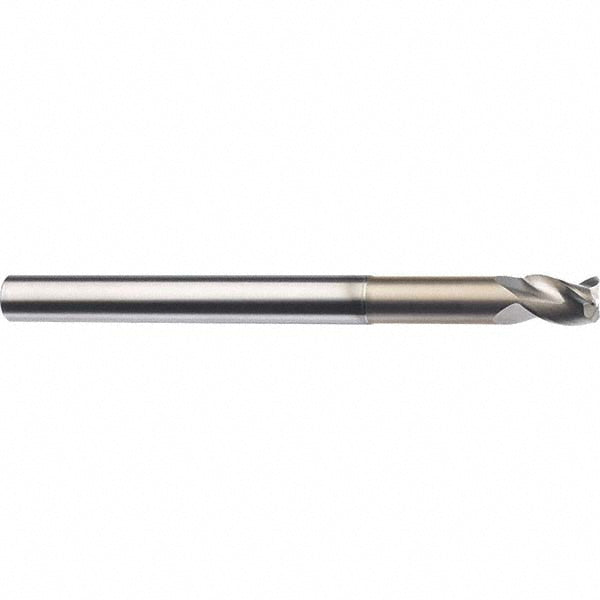

1/2" 3-Flute Solid Carbide Corner Radius End Mill - SGS 32775

MFR# 32775Series 43LC

$159.18List $204.16 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The SGS 32775 is a 1/2 3-flute Solid Carbide (Micrograin) corner radius end mill. Suited for non-ferrous metal. 5/8 length of cut, 6 overall length. Series 43LC.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0300

Corner radius tolerance-0.0020 to 0.0000 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in5/8

Length typeShort

Material applicationNon-Ferrous Metal

Material gradeMicrograin

Material removal typeRoughing

Mill diameter in1/2

Mill diameter tolerance-0.0004 to 0.0000 in

Neck diameter0.4800

Number of flutes3

Overall length in6

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in3-3/8

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
