3/16" 3-Flute Solid Carbide Ball End Mill - M.A. Ford. 138B18751

M.A. Ford.

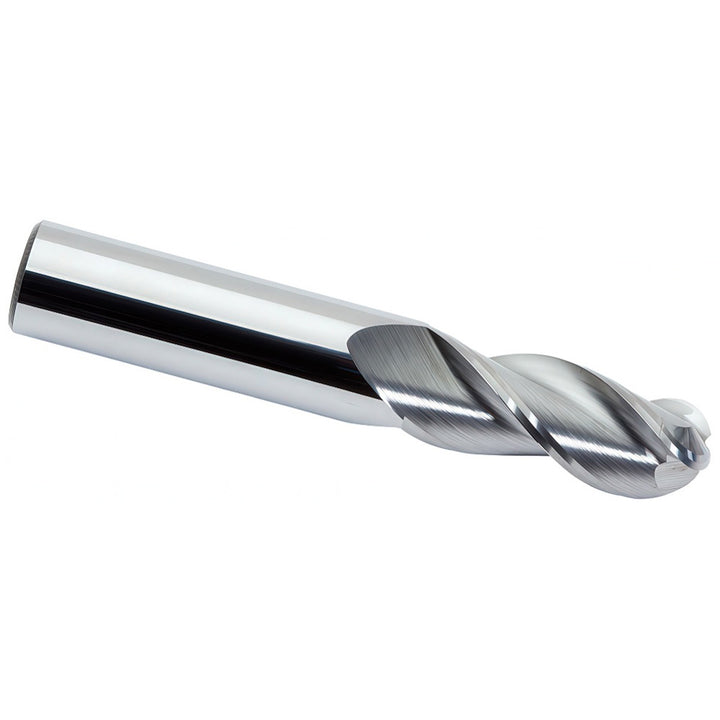

3/16" 3-Flute Solid Carbide Ball End Mill - M.A. Ford. 138B18751

MFR# 138B18751Series 138B

$56.27List $70.92 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

The M.A. Ford. 138B18751 is a 3/16 3-flute Solid Carbide ball end mill. Suited for non-ferrous metal. 5/8 length of cut, 2-1/2 overall length. Series 138B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle36
Length of cut in5/8
Length typeRegular
Mill diameter in3/16
Mill diameter tolerance+0.000 to 0.005 in
Nose radius0.0937
Number of flutes3
Overall length in2-1/2
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/16
Shank diameter toleranceh6
Single or double endSingle
Variable helixNo
Variable indexNo
