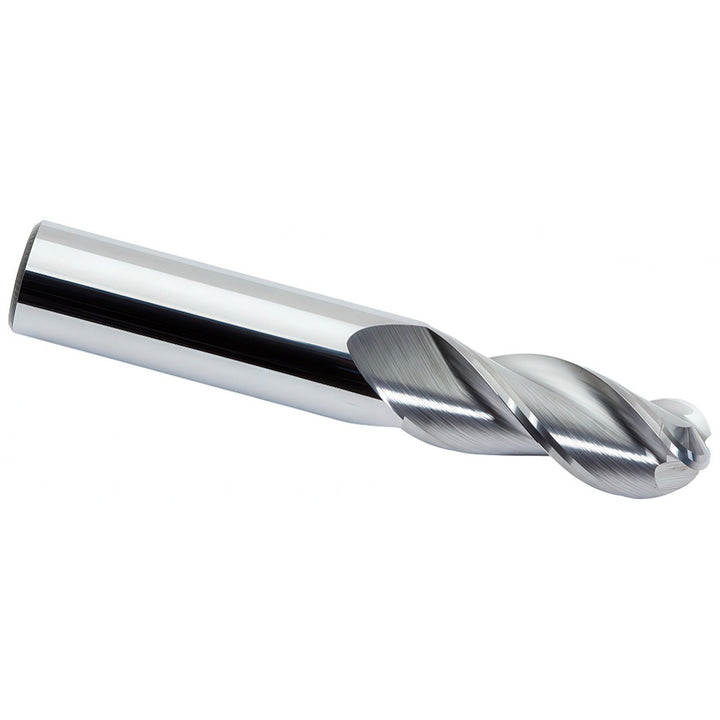

0.2362" 3-Flute Solid Carbide Ball End Mill - M.A. Ford. 138B23620

M.A. Ford.

0.2362" 3-Flute Solid Carbide Ball End Mill - M.A. Ford. 138B23620

MFR# 138B23620Series 138B

$36.50List $46.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

The M.A. Ford. 138B23620 is a 0.2362 3-flute Solid Carbide ball end mill. Suited for non-ferrous metal. Series 138B.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle36
Length of cut (mm)20.00
Length typeRegular
Mill diameter0.2362
Mill diameter tolerance+0.000 to 0.013 mm
Nose radius0.1181
Number of flutes3
Overall length (mm)64.00
Primary workpiece materialNon-Ferrous Metal
Shank diameter (mm)6.00
Shank diameter toleranceh6
Single or double endSingle
Variable helixNo
Variable indexNo
