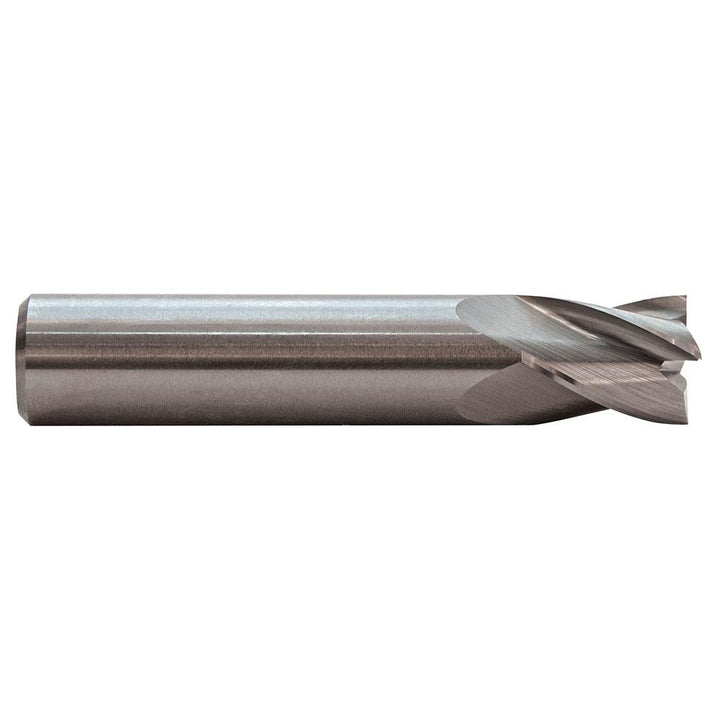

1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - M.A. Ford. 16350000A

M.A. Ford.

1/2" 4-Flute Solid Carbide Square End Mill, TiAlN - M.A. Ford. 16350000A

MFR# 16350000ASeries 163

$91.19List $116.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The M.A. Ford. 16350000A is a 1/2 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 163.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeStub
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.003 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/2
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
