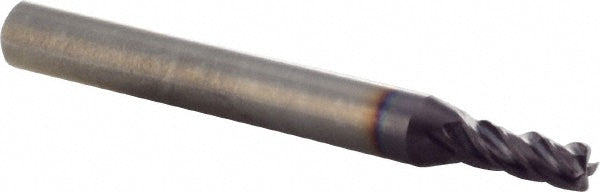

0.1575" 4-Flute Solid Carbide Corner Radius End Mill, ALtima - M.A. Ford. 17715701A

MFR# 17715701ASeries 177

$54.64List $70.07 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingALtima

Description

The M.A. Ford. 17715701A is a 0.1575 4-flute Solid Carbide corner radius end mill with a ALtima finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. Series 177.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishALtima

Coolant throughNo

Corner radius0.0200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Length of cut0.4331

Length typeRegular

Manufacturers catalog number17715701A

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material removal typeRoughing & Finishing

Mill diameter0.1575

Mill diameter tolerance+0.000/-0.048 mm

Number of flutes4

Overall length (mm)57

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length (mm)11.00

Shank diameter (mm)6

Shank diameter tolerance+0.000/-0.009 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexNo
