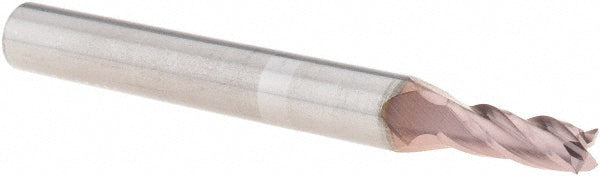

0.1575" 4-Flute Solid Carbide Square End Mill, TiCN - SGS 45482

MFR# 45482Series 54M

$27.83List $35.69 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The SGS 45482 is a 0.1575 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. Suited for non-ferrous metal. 0.4331 length of cut. Series 54M.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.4331

Length of cut range0.3000 - 0.5000

Length typeRegular

Material gradeMicrograin

Mill diameter0.1575

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes4

Overall length (mm)57

Primary workpiece materialNon-Ferrous Metal

Shank diameter0.2362

Shank diameter tolerance+0.000/-0.008 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
