3/16" 5-Flute Solid Carbide Square End Mill, TiAlN - M.A. Ford. 17818710A

MFR# 17818710ASeries 178

$36.10List $46.31 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes5

MaterialSolid Carbide

CoatingTiAlN

Description

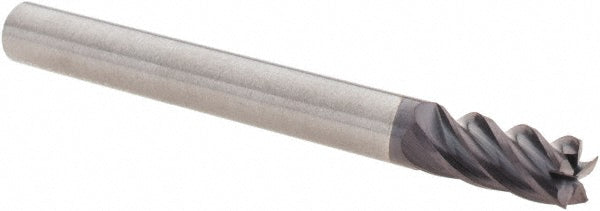

The M.A. Ford. 17818710A is a 3/16 5-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. 7/16 length of cut, 2 overall length. Series 178.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle38

Length of cut in7/16

Length of cut range0.3000 - 0.5000

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.000/-0.002 in

Number of flutes5

Overall length in2

Shank diameter in3/16

Shank diameter tolerance+0/-0.0031 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
