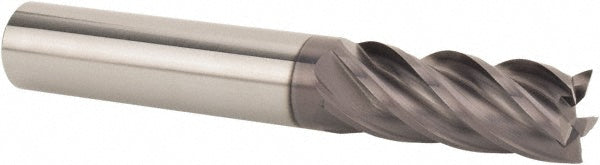

0.1875" 5-Flute Solid Carbide Roughing End Mill, AlTiN - SGS 37182

SGS

0.1875" 5-Flute Solid Carbide Roughing End Mill, AlTiN - SGS 37182

MFR# 37182Series Z5

$38.11List $48.89 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 37182 is a 0.1875 5-flute Solid Carbide (Micrograin) roughing end mill with a AlTiN finish for longer tool life. Series Z5.

Specifications

CentercuttingNo
Coating finishAlTiN
Coolant throughYes
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut0.5000
Length typeRegular
Material gradeMicrograin
Maximum helix angle37
Mill diameter0.1875
Mill diameter frac in3/16
Mill diameter tolerance+0.0000 to -0.0012 in
Number of flutes5
PitchVariable
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
