1/2" 5-Flute Solid Carbide Square End Mill, AlCrN - M.A. Ford. 27850020B

M.A. Ford.

1/2" 5-Flute Solid Carbide Square End Mill, AlCrN - M.A. Ford. 27850020B

MFR# 27850020B

$131.02List $168.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlCrN

Description

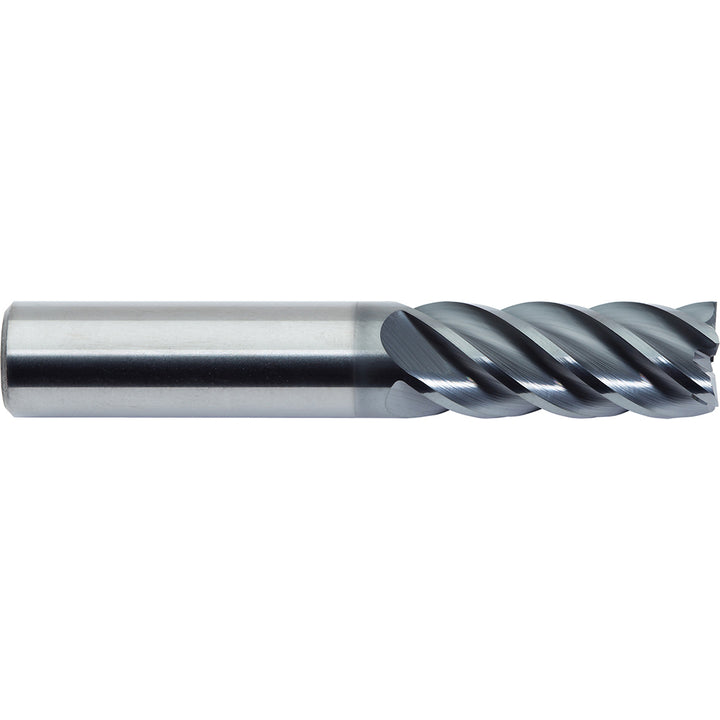

The M.A. Ford. 27850020B is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a AlCrN finish for longer tool life. 1-1/4 length of cut, 3 overall length.

Specifications

CentercuttingYes
Coating finishAlCrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle40
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeStandard
Material gradeMicrograin
Mill diameter in1/2
Number of flutes5
Overall length in3
Shank diameter in1/2
Variable helixNo
Variable indexYes
