Micro 100

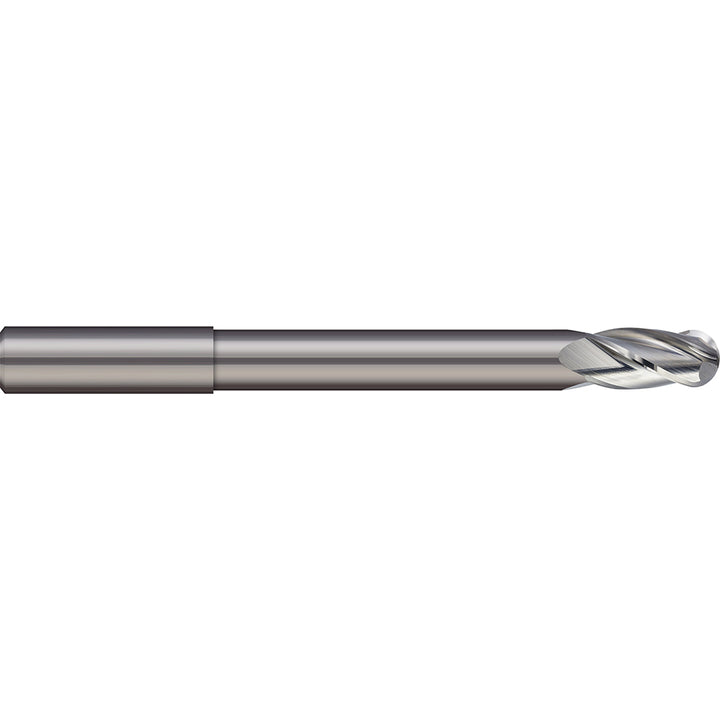

1/2" 2-Flute Solid Carbide Ball End Mill - Micro 100 BLR-500-2
MFR# BLR-500-2Series End Mills - Ball - 2, 3, 4 Flute - Reduced Neck, End Mills - Ball
$126.45List $134.59
Save 6%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Micro 100 BLR-500-2 is a 1/2 2-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1 length of cut, 6 overall length. Series End Mills - Ball - 2, 3, 4 Flute - Reduced Neck, End Mills - Ball.
Specifications
Additional informationEnd Mills - Ball - 2, 3, 4 Flute - Reduced Neck
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in1
Length typeStandard
Manufacturers catalog numberBLR-500-2
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter toleranceh6
Neck diameter0.4800
Neck length in3-1/2
Nose radius0.2500
Number of flutes2
Overall length in6
Overall length tolerance+0.0150/-0.0150 in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Reach length in4-1/2
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
