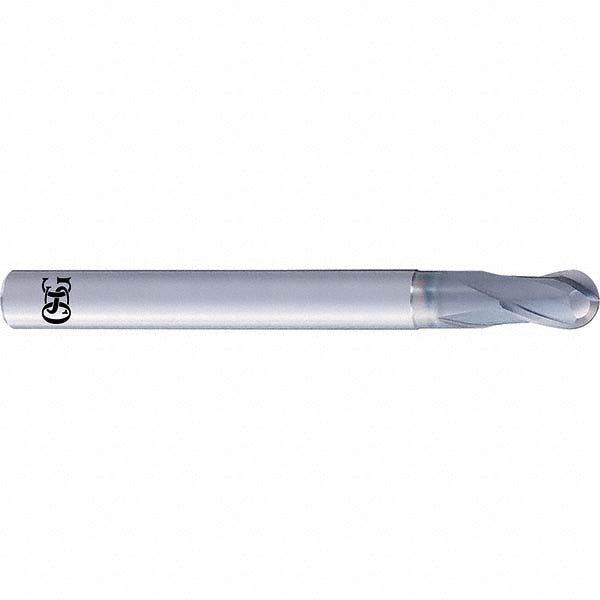

0.2362" 2-Flute Solid Carbide Ball End Mill, DUROREY - OSG 3042010

OSG

0.2362" 2-Flute Solid Carbide Ball End Mill, DUROREY - OSG 3042010

MFR# 3042010Series 8510

$66.87List $85.77 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingDUROREY

Description

The OSG 3042010 is a 0.2362 2-flute Solid Carbide ball end mill with a DUROREY finish for longer tool life. Suited for hard material. Series 8510.

Specifications

Additional information2-Flute High-Precision Finishing Carbide Ball End Mill For High-Hardness Steels
ChipbreakerNo
Coating finishDUROREY
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle25
Helix styleMedium
Length of cut (mm)9.00mm
Length typeStub
Manufacturers catalog number3042010
Material removal typeRoughing & Finishing
Mill diameter0.2362
Mill diameter tolerance0.005 mm
Neck diameter (mm)5.80
Neck length (mm)0.00
Nose radius (mm)3.00
Number of flutes2
Overall length (mm)90.00mm
Primary workpiece materialHard Material
Reach length (mm)9.00
Secondary workpiece materialSteel
Shank diameter (mm)6.00mm
Shank diameter toleranceh4
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Kennametal0.2362" 2-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5874174 $54.64 Guhring0.2362" 2-Flute Solid Carbide Ball End Mill, TiAlN - Guhring 9038660060000 $105.06 OSG0.2362" 2-Flute Solid Carbide Ball End Mill, WXL - OSG 3106601 $67.92 Kennametal0.2362" 2-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 5874161 $54.64
