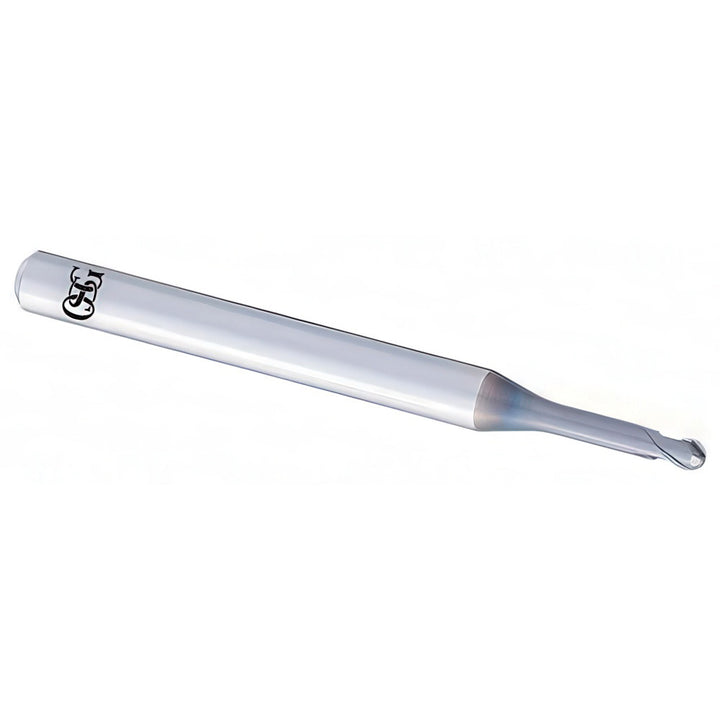

0.1181" 2-Flute Solid Carbide Ball End Mill, DUROREY - OSG 3056311

OSG

0.1181" 2-Flute Solid Carbide Ball End Mill, DUROREY - OSG 3056311

MFR# 3056311Series 8590

$65.49List $84.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingDUROREY

Description

The OSG 3056311 is a 0.1181 2-flute Solid Carbide ball end mill with a DUROREY finish for longer tool life. Suited for hard material. Series 8590.

Specifications

Additional information2-Flute High-Precision Finishing Long Neck Carbide Ball End Mill For High-Hardness Steels
ChipbreakerNo
Coating finishDUROREY
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut (mm)2.40mm
Length typeExtended
Manufacturers catalog number3056311
Material removal typeRoughing & Finishing
Mill diameter0.1181
Mill diameter tolerance0.005 mm
Neck diameter (mm)2.85
Neck length21.9000
Nose radius (mm)1.50
Number of flutes2
Overall length (mm)55.00mm
Primary workpiece materialHard Material
Reach length (mm)21.90
Secondary workpiece materialSteel
Shank diameter (mm)6.00mm
Shank diameter toleranceh4
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
