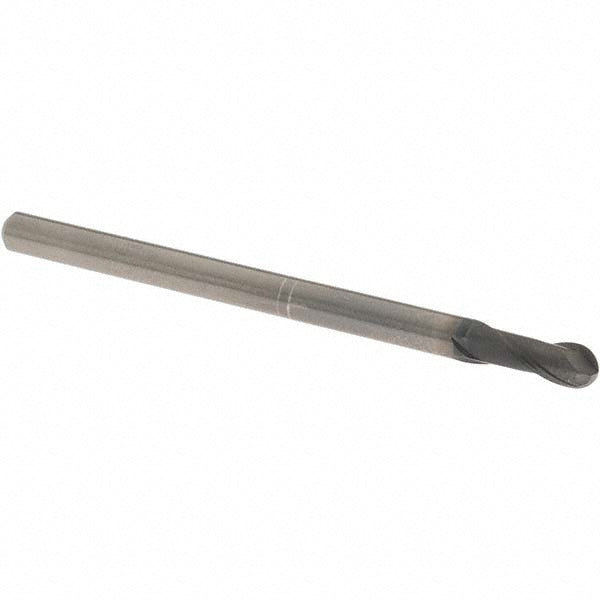

0.1575" 2-Flute Solid Carbide Ball End Mill, WXL - OSG 3105400

MFR# 3105400Series 3710

$47.87List $61.39 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingWXL

Description

The OSG 3105400 is a 0.1575 2-flute Solid Carbide (Ultra Fine Micrograin) ball end mill with a WXL finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material. Series 3710.

Specifications

Additional informationExocarbWXL End Mills Are The New Industry Standard For Hard Milling. Everything About WXL Is Designed For Rigidity And Performance In Wide Variety Of Materials And A Wide Variety Of Milling Applications. Substrates, Geometry, And Proprietary WXL Coating A

ChipbreakerNo

Coating finishWXL

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Helix styleMedium

Length of cut (mm)8.00mm

Length typeStandard

Manufacturers catalog number3105400

Material gradeUltra Fine Micrograin

Material removal typeRoughing & Finishing

Mill diameter0.1575

Mill diameter tolerance+0.005/-0.005 mm

Neck length (mm)0.00

Nose radius (mm)2.00

Number of flutes2

Overall length (mm)60.00mm

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material

Reach length (mm)8.00

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium

Shank diameter (mm)4.00mm

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
