OSG

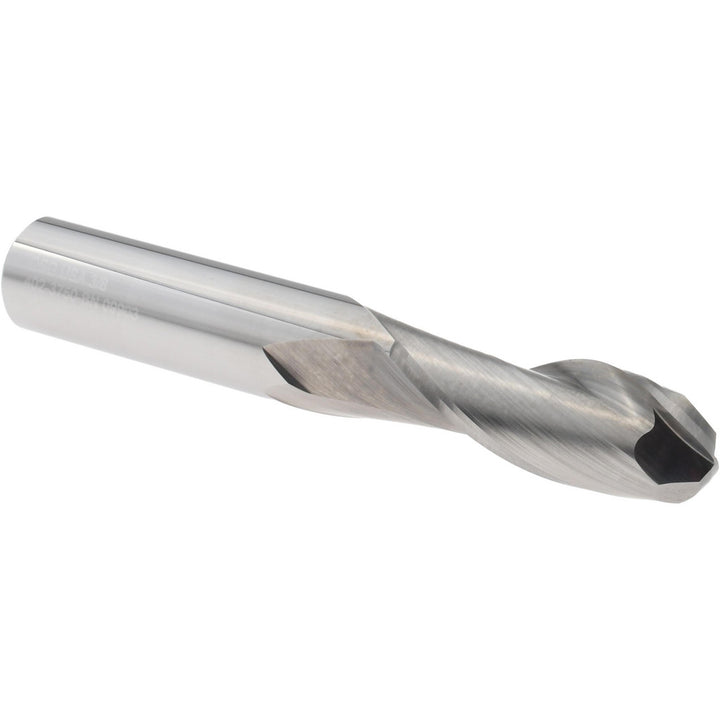

3/8" 2-Flute Solid Carbide Ball End Mill - OSG 402-3750-BN

MFR# 402-3750-BNSeries 402BN

$36.01List $46.19 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes2

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The OSG 402-3750-BN is a 3/8 2-flute Solid Carbide (Micrograin) ball end mill. 1 length of cut, 2-1/2 overall length. Series 402BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists of a Variety of Different End Mill Designs, Made to OSG Quality Standards At a Value-Added Price Point That Is Friendly to Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in1

Length typeStandard

Manufacturers catalog number402-3750-BN

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.1875

Number of flutes2

Overall length in2-1/2

Reach length1.0000

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in3/8

Shank diameter tolerance+0.0000/-0.0005 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
