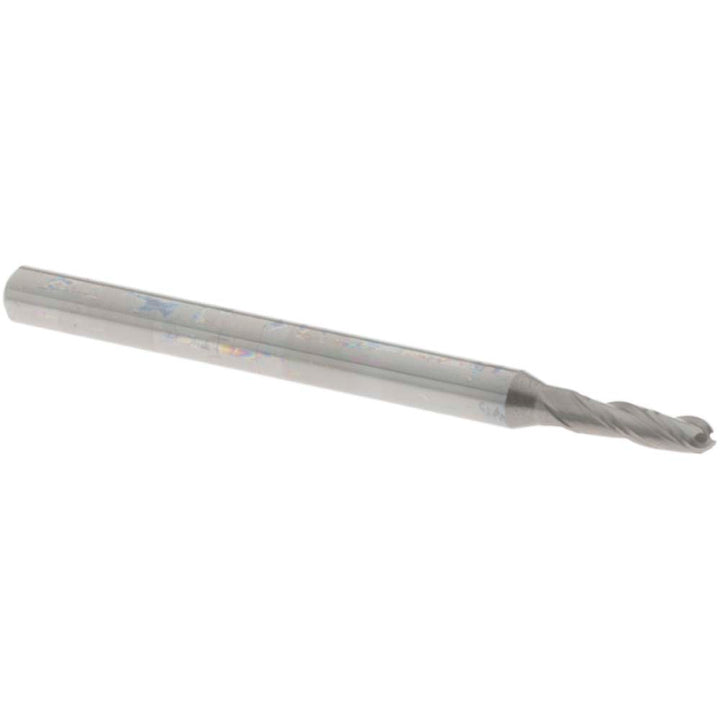

0.0787" 3-Flute Solid Carbide Ball End Mill - OSG 403-0787-BN
MFR# 403-0787-BNSeries 403BN
$14.12List $17.79
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 403-0787-BN is a 0.0787 3-flute Solid Carbide ball end mill. Series 403BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut (mm)7.00mm
Length typeStandard
Manufacturers catalog number403-0787-BN
Material removal typeRoughing & Finishing
Mill diameter0.0787
Mill diameter tolerance+0.00/-0.05 mm
Neck length (mm)0.00
Nose radius (mm)1.00
Number of flutes3
Overall length (mm)39.00mm
Reach length (mm)7.00
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter (mm)3.00mm
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
