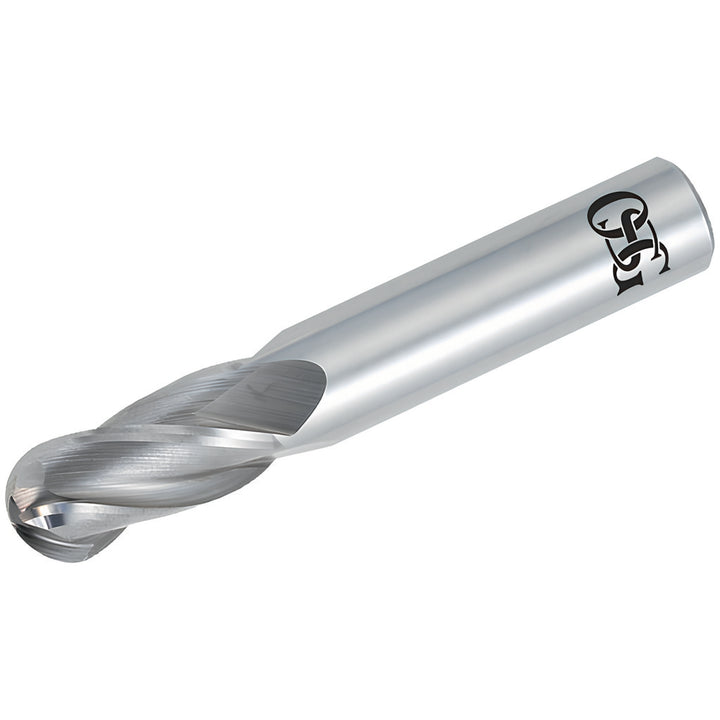

0.1181" 4-Flute Solid Carbide Ball End Mill - OSG 404-1181-BN

Name: 0.1181" 4-Flute Solid Carbide Ball End Mill - OSG 404-1181-BN
Brand: OSG
SKU: 404-1181-BN
Price: 12.63 USD
Availability: InStock

MFR# 404-1181-BNSeries 404BN

$12.63List $16.20 Save 22%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The OSG 404-1181-BN is a 0.1181 4-flute Solid Carbide (Micrograin) ball end mill. Series 404BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Helix styleMedium

Length of cut (mm)10.00mm

Length typeStandard

Manufacturers catalog number404-1181-BN

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter0.1181

Mill diameter tolerance+0.00/-0.05 mm

Neck length (mm)0.00

Nose radius (mm)1.50

Number of flutes4

Overall length (mm)39.00mm

Reach length (mm)10.00

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter (mm)3.00mm

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
