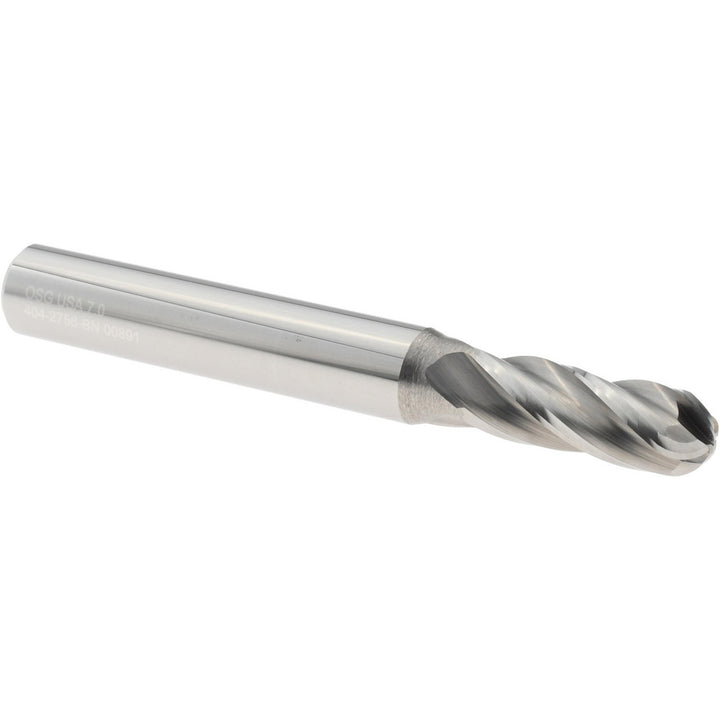

0.2756" 4-Flute Solid Carbide Ball End Mill - OSG 404-2756-BN

OSG

0.2756" 4-Flute Solid Carbide Ball End Mill - OSG 404-2756-BN

MFR# 404-2756-BNSeries 404BN

$27.91List $35.17 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The OSG 404-2756-BN is a 0.2756 4-flute Solid Carbide (Micrograin) ball end mill. Series 404BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists of a Variety of Different End Mill Designs, Made to OSG Quality Standards At a Value-Added Price Point That Is Friendly to Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut (mm)19.00
Length typeStandard
Manufacturers catalog number404-2756-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter0.2756
Mill diameter tolerance+0.00/-0.05 mm
Nose radius (mm)3.50
Number of flutes4
Overall length (mm)64.00
Reach length (mm)19.00
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter (mm)8.00
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
