OSG

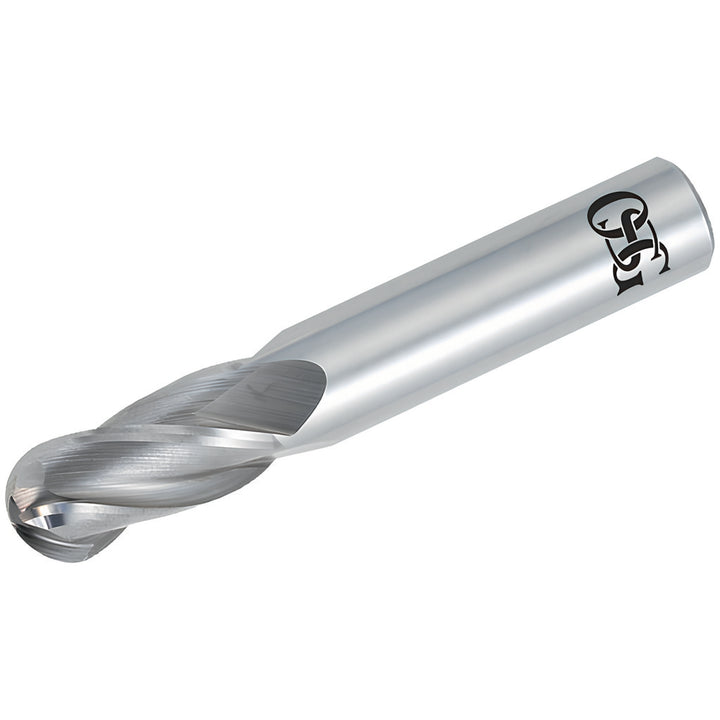

0.7874" 4-Flute Solid Carbide Ball End Mill - OSG 404-7874-BN

MFR# 404-7874-BNSeries 404BN

$149.61List $191.89 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The OSG 404-7874-BN is a 0.7874 4-flute Solid Carbide (Micrograin) ball end mill. Series 404BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists Of A Variety Of Different End Mill Designs, Made To OSG Quality Standards At A Value-Added Price Point That Is Friendly To Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Helix styleMedium

Length of cut (mm)38.00mm

Length typeStandard

Manufacturers catalog number404-7874-BN

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter0.7874

Mill diameter tolerance+0.00/-0.05 mm

Neck length (mm)0.00

Nose radius (mm)10.00

Number of flutes4

Overall length (mm)102.00mm

Reach length (mm)38.00

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter (mm)20.00mm

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
