OSG

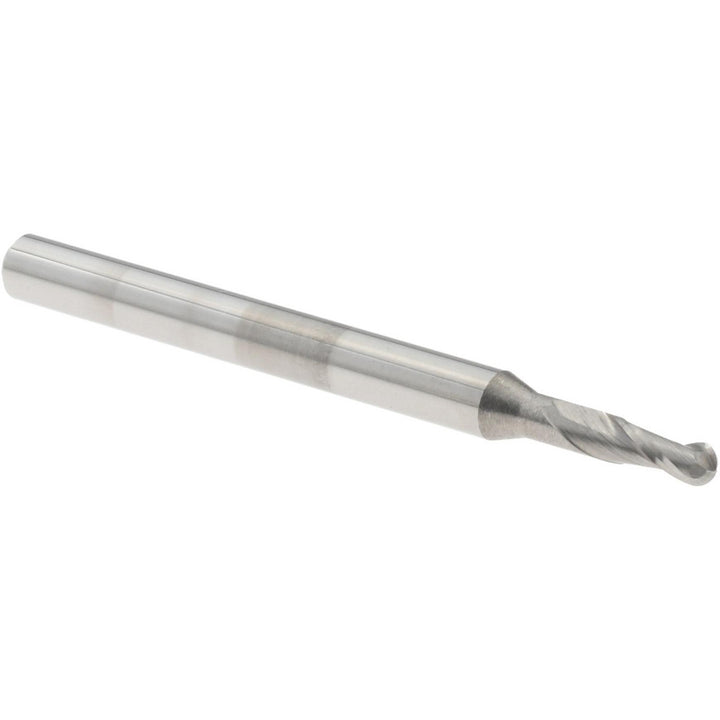

5/64" 2-Flute Solid Carbide Ball End Mill - OSG 412-0781-BN
MFR# 412-0781-BNSeries 412BN
$13.56List $17.39
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/64
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 412-0781-BN is a 5/64 2-flute Solid Carbide (Micrograin) ball end mill. 5/32 length of cut, 1-1/2 overall length. Series 412BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists of a Variety of Different End Mill Designs, Made to OSG Quality Standards At a Value-Added Price Point That Is Friendly to Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in5/32
Length typeStandard
Manufacturers catalog number412-0781-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in5/64
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0391
Number of flutes2
Overall length in1-1/2
Reach length0.1563
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/8
Shank diameter tolerance+0.0000/-0.0005 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
