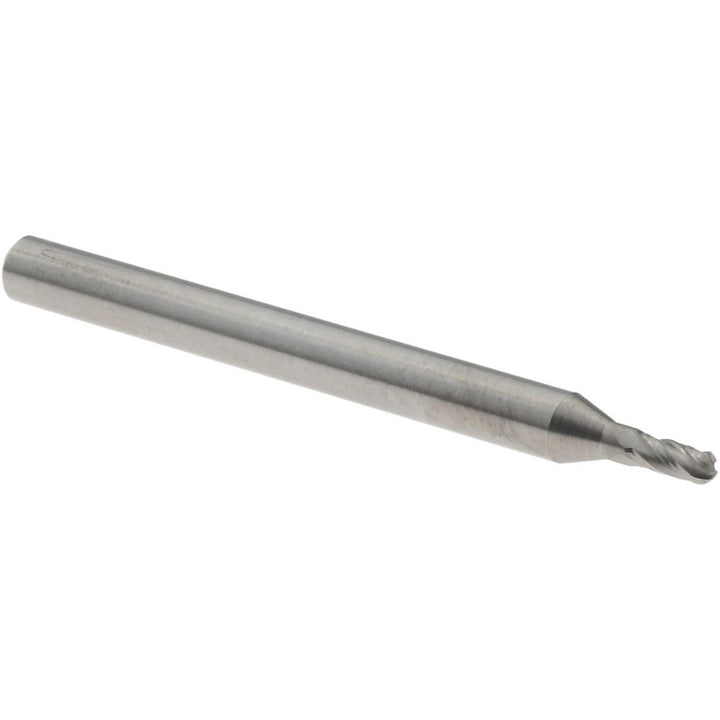

1/16" 4-Flute Solid Carbide Ball End Mill - OSG 414-0625-BN

MFR# 414-0625-BNSeries 414BN

$11.96List $15.34 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes4

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The OSG 414-0625-BN is a 1/16 4-flute Solid Carbide (Micrograin) ball end mill. 1/8 length of cut, 1-1/2 overall length. Series 414BN.

Specifications

Additional informationThe Standard Carbide End Mill Lineup Consists of a Variety of Different End Mill Designs, Made to OSG Quality Standards At a Value-Added Price Point That Is Friendly to Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in1/8

Length typeStandard

Manufacturers catalog number414-0625-BN

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in1/16

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.0313

Number of flutes4

Overall length in1-1/2

Reach length0.1250

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
