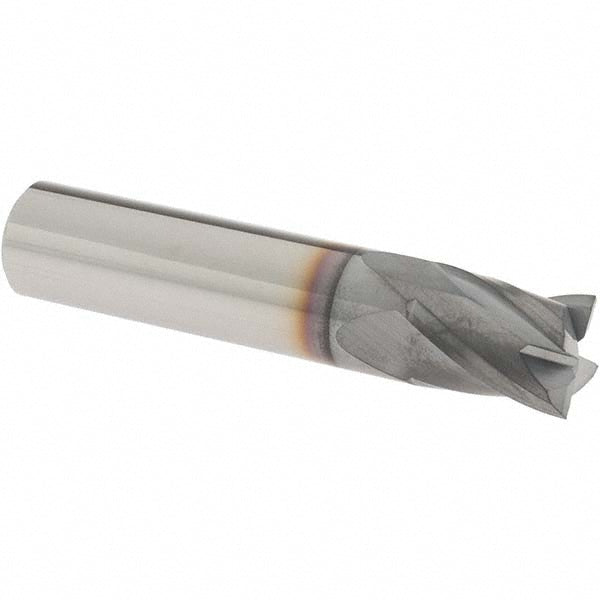

1/2" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 414-500008

OSG

1/2" 4-Flute Solid Carbide Square End Mill, TiCN - OSG 414-500008

MFR# 414-500008Series 414

$62.96List $80.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The OSG 414-500008 is a 1/2 4-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2-1/2 overall length. Series 414.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStub
Material gradeMicrograin
Mill diameter in1/2
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in2-1/2
Shank diameter in1/2
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
