OSG

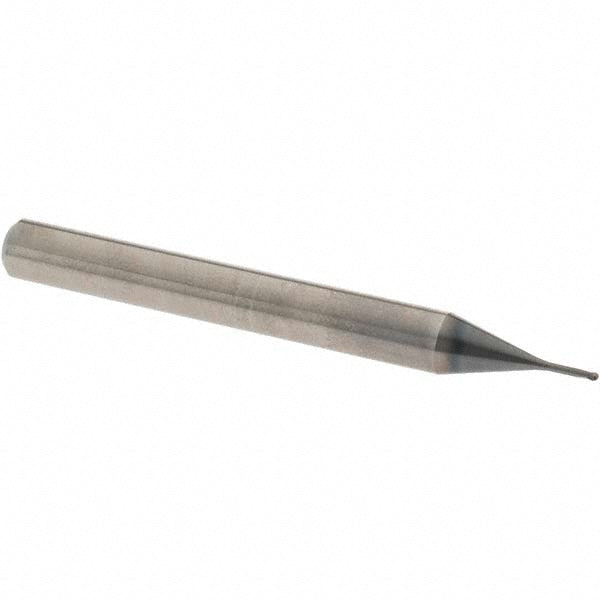

0.0394" 2-Flute Solid Carbide Ball End Mill, WXS - OSG 45130001
MFR# 45130001Series 4513
$111.70List $143.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingWXS
Description
The OSG 45130001 is a 0.0394 2-flute Solid Carbide (Ultra Fine Micrograin) ball end mill with a WXS finish for longer tool life. Suited for steel, cast iron, hard material. Series 4513.
Specifications
Additional informationExocarb®-WXS End Mills Are The New Industry Standard For Hard Milling. Everything About WXS Is Designed For Rigidity And Performance In Hardened Steel 50 Hrc And Greater. Substrates, Geometry, And Proprietary WXS Coating Are All Specifically Tailored For
ChipbreakerNo
Coating finishWXS
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle30
Helix styleMedium
Length of cut (mm)0.70mm
Length typeExtended
Manufacturers catalog number45130001
Material gradeUltra Fine Micrograin
Material removal typeRoughing & Finishing
Mill diameter0.0394
Neck diameter (mm)0.85
Neck length (mm)4.30
Nose radius (mm)0.50
Number of flutes2
Overall length (mm)60.00mm
Primary workpiece materialSteel; Cast Iron; Hard Material
Reach length (mm)5.00
Secondary workpiece materialStainless Steel
Shank diameter (mm)6.00mm
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementMetric
Variable helixNo
Variable indexNo
