OSG
1/8" 4-Flute Solid Carbide Ball End Mill - OSG 464-1250-BN
MFR# 464-1250-BNSeries 464BN
$22.16List $28.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description

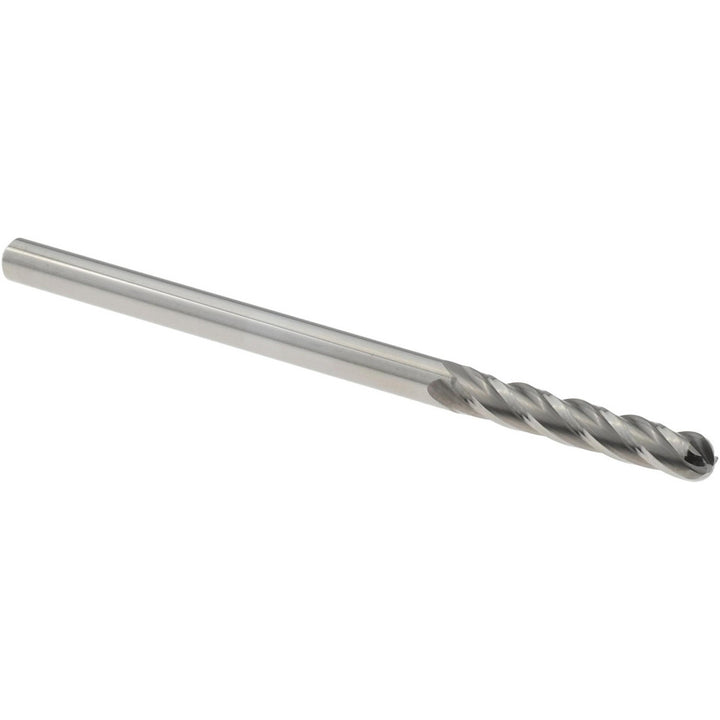

The OSG 464-1250-BN is a 1/8 4-flute Solid Carbide (Micrograin) ball end mill. 3/4 length of cut, 2-1/4 overall length. Series 464BN.
Specifications
Additional informationThe Standard Carbide End Mill Lineup Consists of a Variety of Different End Mill Designs, Made to OSG Quality Standards At a Value-Added Price Point That Is Friendly to Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in3/4
Length typeLong
Manufacturers catalog number464-1250-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.0625
Number of flutes4
Overall length in2-1/4
Reach length0.7500
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
