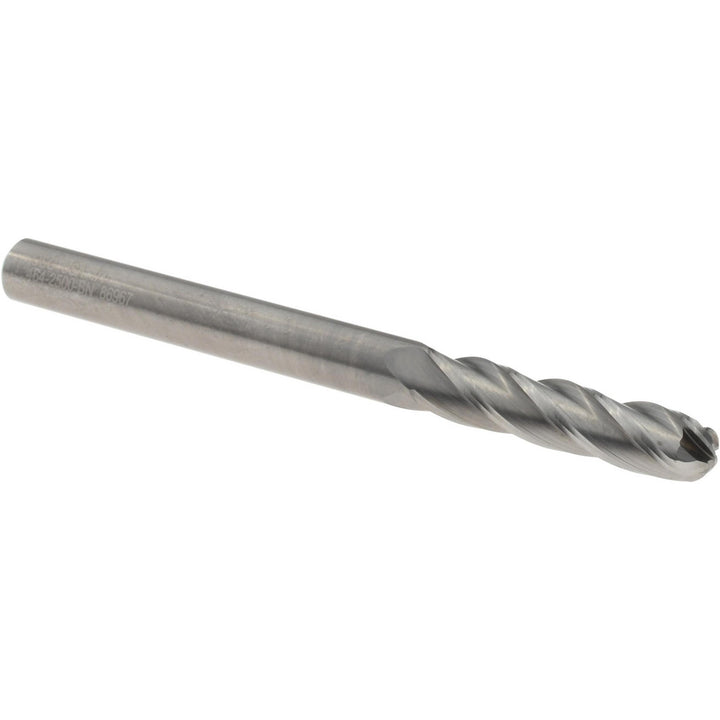

1/4" 4-Flute Solid Carbide Ball End Mill - OSG 464-2500-BN
MFR# 464-2500-BNSeries 464BN
$32.60List $41.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The OSG 464-2500-BN is a 1/4 4-flute Solid Carbide (Micrograin) ball end mill. 1-1/8 length of cut, 3 overall length. Series 464BN.
Specifications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in1-1/8
Length typeLong
Manufacturers catalog number464-2500-BN
Material gradeMicrograin
Material removal typeRoughing & Finishing
Mill diameter in1/4
Mill diameter tolerance+0.0000/-0.0020 in
Neck length0.0000
Nose radius0.1250
Number of flutes4
Overall length in3
Reach length1.1250
Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
