1" 2-Flute Cobalt Ball End Mill - OSG 5215100

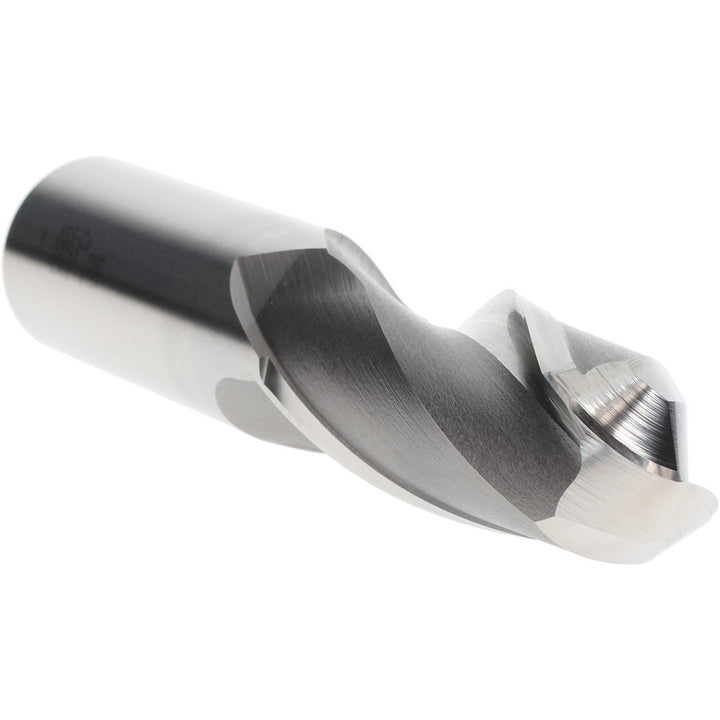

Name: 1" 2-Flute Cobalt Ball End Mill - OSG 5215100
Brand: OSG
SKU: 5215100
Price: 201.18 USD
Availability: InStock

MFR# 5215100Series 521

$201.18List $253.53 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes2

MaterialCobalt

CoatingBright/Uncoated

Description

The OSG 5215100 is a 1 2-flute Cobalt ball end mill. Suited for steel. 2-1/4 length of cut, 4-3/4 overall length. Series 521.

Specifications

Additional informationHSS-Co End Mill High Performance Cobalt HSS End Mills for General Milling Applications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialCobalt

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in2-1/4

Length typeStandard

Manufacturers catalog number5215100

Material removal typeRoughing & Finishing

Mill diameter in1

Mill diameter tolerance+0.0011/-0.0000 in

Neck length0.0000

Nose radius0.5000

Number of flutes2

Overall length in4-3/4

Primary workpiece materialSteel

Reach length2.2500

Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Hard Material

Shank diameter in1

Shank typeWeldon Flat

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
