OSG

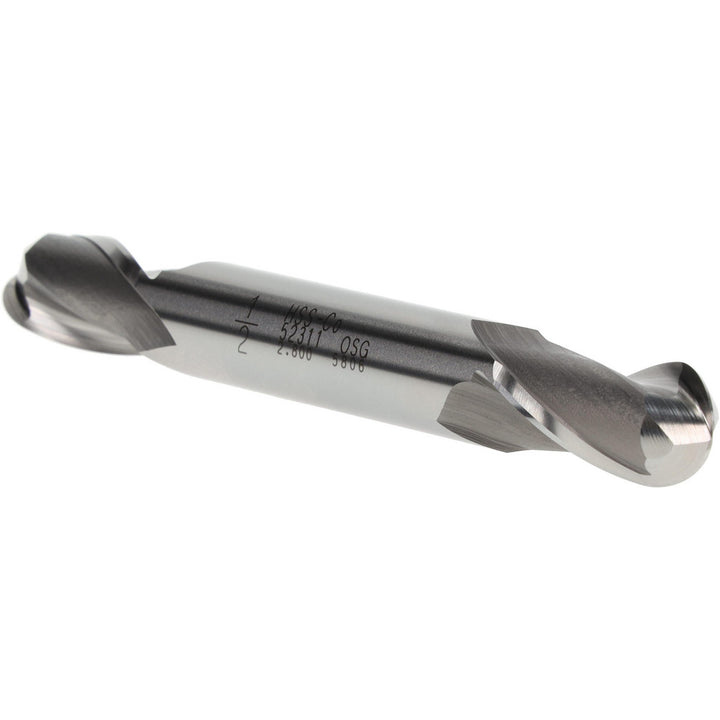

1/2" 2-Flute Cobalt Ball End Mill - OSG 5231100
MFR# 5231100Series 523
$93.47List $119.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes2
MaterialCobalt
CoatingBright/Uncoated
Description
The OSG 5231100 is a 1/2 2-flute Cobalt (M42) ball end mill. Suited for steel. 13/16 length of cut, 3-3/4 overall length. Series 523.
Specifications
Additional informationHSS-Co End Mill High Performance Cobalt HSS End Mills for General Milling Applications
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut in13/16
Length typeStandard
Manufacturers catalog number5231100
Material gradeM42
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance-0.0004/-0.0015 in
Neck length0.0000
Nose radius0.2500
Number of flutes2
Overall length in3-3/4
Primary workpiece materialSteel
Reach length0.8125
Secondary workpiece materialStainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/2
Shank typeWeldon Flat
Single or double endDouble
System of measurementFractional Inch
Variable helixNo
Variable indexNo
