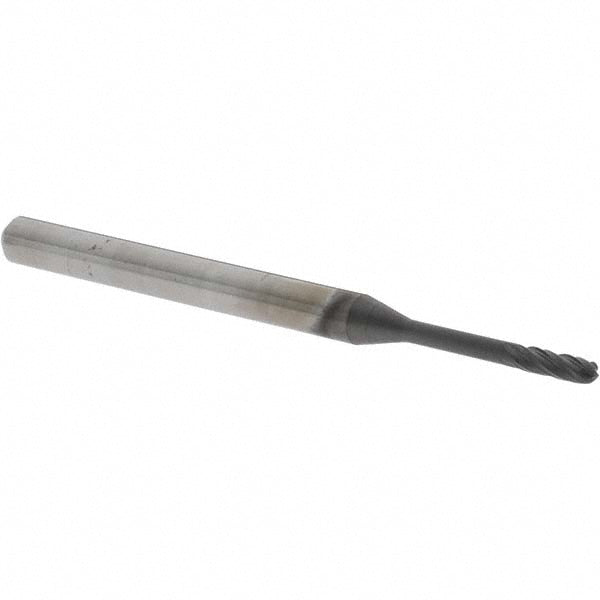

1/16" 4-Flute Solid Carbide Ball End Mill, PCD - OSG 70300316

MFR# 70300316Series 7030

$117.25List $150.37 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/16

Flutes4

MaterialSolid Carbide

CoatingPCD

Description

The OSG 70300316 is a 1/16 4-flute Solid Carbide ball end mill with a PCD finish for longer tool life. Suited for non-ferrous metal, graphite. 3/16 length of cut, 1-3/4 overall length. Series 7030.

Specifications

Additional informationExocarbdiamond High Performance Diamond Coated Ball Mills for Graphite & Non-Ferrous Materials

ChipbreakerNo

Coating finishPCD

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in3/16

Length typeExtended

Manufacturers catalog number70300316

Material removal typeRoughing & Finishing

Mill diameter in1/16

Mill diameter tolerance+0.0000/-0.0015 in

Neck diameter0.0560

Neck length in5/16

Nose radius0.0313

Number of flutes4

Overall length in1-3/4

Primary workpiece materialNon-Ferrous Metal; Graphite

Reach length in1/2

Shank diameter in1/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
