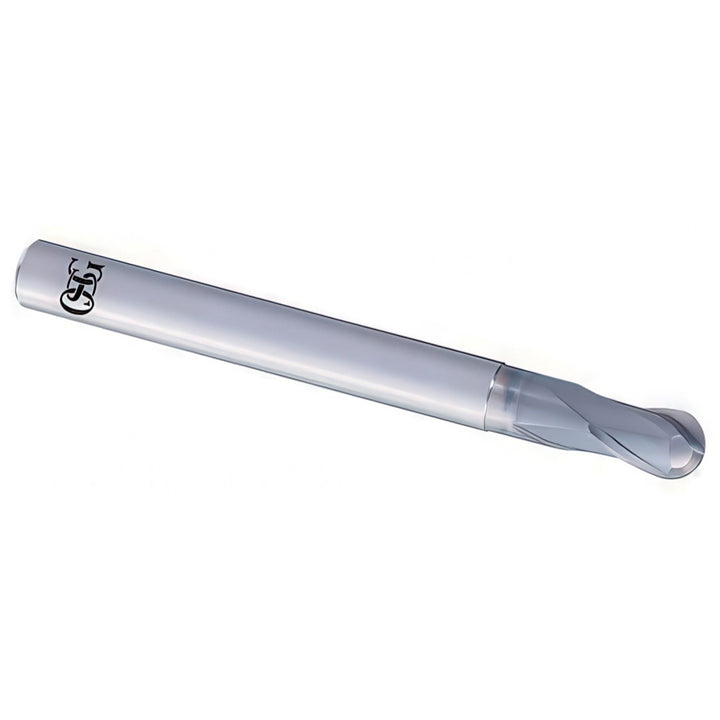

1/4" 2-Flute Solid Carbide Ball End Mill, DUROREY - OSG 84100523

MFR# 84100523Series 8410

$70.51List $90.43 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingDUROREY

Description

The OSG 84100523 is a 1/4 2-flute Solid Carbide ball end mill with a DUROREY finish for longer tool life. Suited for hard material. 1/4 length of cut, 3 overall length. Series 8410.

Specifications

Additional information2-Flute High-Precision Finishing Carbide Ball End Mill for High-Hardness Steels

ChipbreakerNo

Coating finishDUROREY

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle20

Helix styleLow

Length of cut in1/4

Length typeStub

Manufacturers catalog number84100523

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter tolerance+0.00000/-0.00028 in

Neck diameter0.2460

Neck length0.0000

Nose radius0.1250

Number of flutes2

Overall length in3

Primary workpiece materialHard Material

Reach length0.3740

Secondary workpiece materialSteel

Shank diameter in1/4

Shank diameter toleranceh4

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
