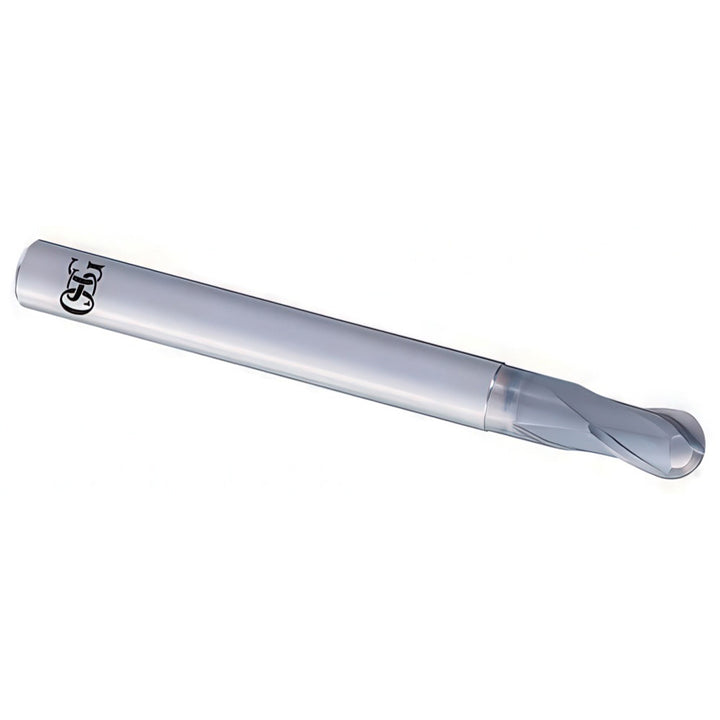

5/16in" 2-Flute Solid Carbide Ball End Mill, DUROREY - OSG 84100623

MFR# 84100623Series 8410

$106.57List $136.68 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16in

Flutes2

MaterialSolid Carbide

CoatingDUROREY

Description

The OSG 84100623 is a 5/16in 2-flute Solid Carbide ball end mill with a DUROREY finish for longer tool life. Suited for hard material. 15/32in length of cut, 3-1/2 overall length. Series 8410.

Specifications

Additional information2-Flute High-Precision Finishing Carbide Ball End Mill For High-Hardness Steels

ChipbreakerNo

Coating finishDUROREY

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle20

Helix styleLow

Length of cut in15/32in

Length typeStub

Manufacturers catalog number84100623

Material removal typeRoughing & Finishing

Mill diameter in5/16in

Mill diameter tolerance+0.00000/-0.00028 in

Neck diameter0.3080in

Neck length0.0000

Nose radius0.1563

Number of flutes2

Overall length in3-1/2

Primary workpiece materialHard Material

Reach length0.4690

Secondary workpiece materialSteel

Shank diameter in5/16

Shank diameter toleranceh4

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
