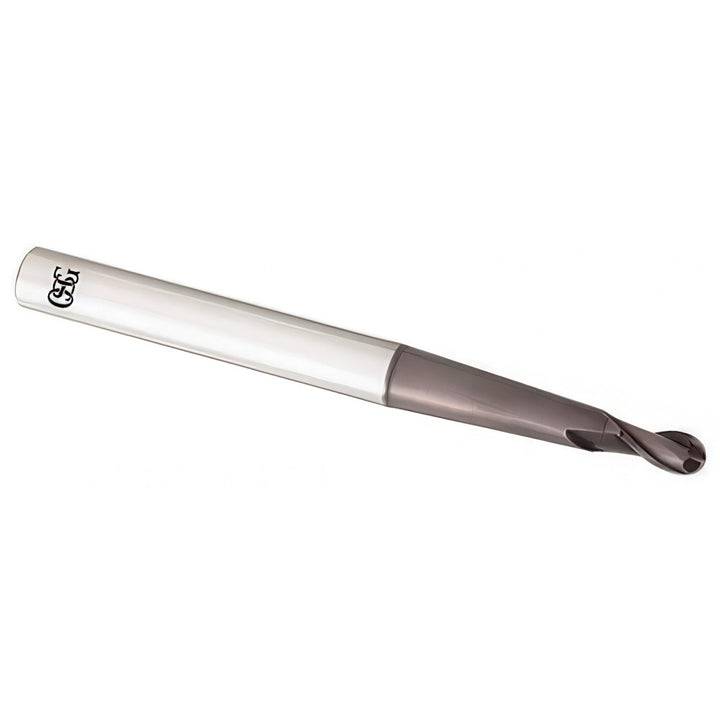

0.0787" 2-Flute Solid Carbide Ball End Mill, TiAlN - OSG HP418-0780

MFR# HP418-0780Series HP418

$50.54List $64.82 Save 22%

In stock - ships in 1-3 business days

Flutes2

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG HP418-0780 is a 0.0787 2-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. Series HP418.

Additional informationThe Hy-Pro-Carb Is An Entire Line up of Performance End Mills Designed for Extend Tool Life.

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut (mm)5.00

Length typeExtended

Manufacturers catalog numberHP418-0780

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter0.0787

Mill diameter tolerance+0.000/-0.038 mm

Neck diameter (mm)4.30

Neck length0.7874

Nose radius (mm)1.00

Number of flutes2

Overall length (mm)60.00

Reach length (mm)20.00

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
