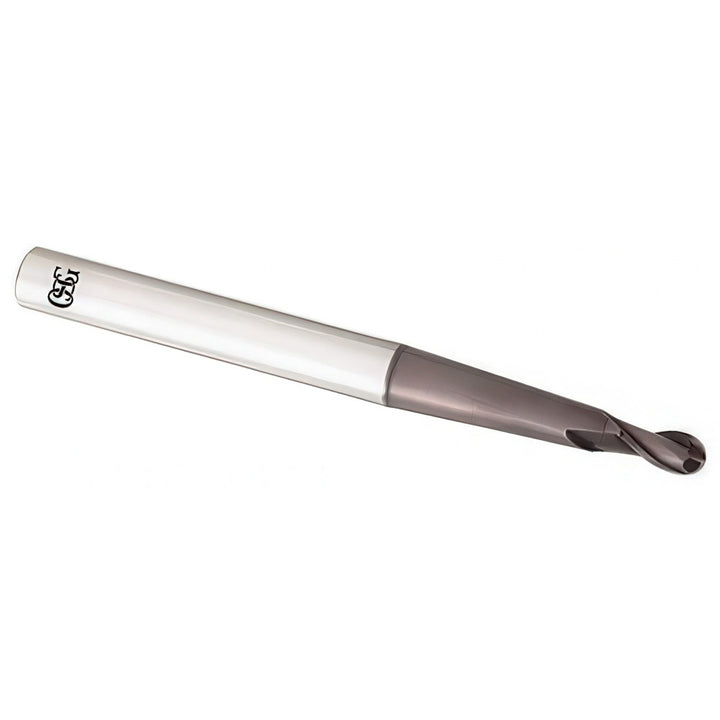

0.0197" 2-Flute Solid Carbide Ball End Mill, TiAlN - OSG HP419-0197

MFR# HP419-0197Series HP419

$50.41List $64.65 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG HP419-0197 is a 0.0197 2-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. Suited for steel, cast iron, hardened materials. Series HP419.

Specifications

Additional informationThe Hy-Pro-Carb Is An Entire Line up of Performance End Mills Designed for Extend Tool Life.

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coating finish familyTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut (mm)0.50

Length typeExtended

Manufacturers catalog numberHP419-0197

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter0.0197

Mill diameter tolerance+0.000/-0.038 mm

Neck diameter (mm)0.45

Neck length0.0984

Nose radius (mm)0.25

Number of flutes2

Overall length (mm)60.00

Primary workpiece materialSteel; Cast Iron; Hardened Materials

Reach length (mm)2.50

Secondary workpiece materialSteel; Cast Iron; Hardened Materials

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
