OSG

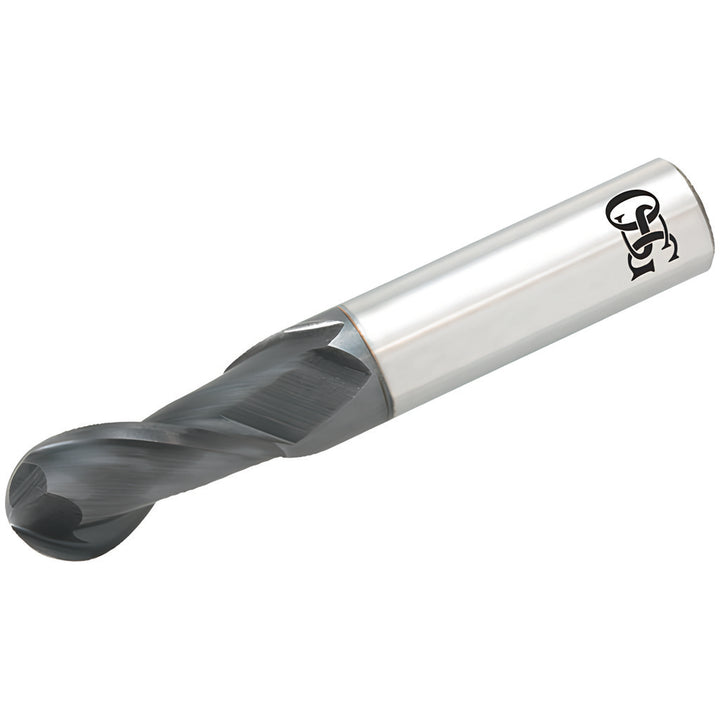

0.0591" 2-Flute Solid Carbide Ball End Mill, TiAlN - OSG HP421-0591-BN

MFR# HP421-0591-BNSeries HP421BN

$21.99List $28.21 Save 22%

In stock - ships in 1-3 business days

Flutes2

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG HP421-0591-BN is a 0.0591 2-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. Series HP421BN.

Additional informationThe Hy-Pro-Carb Is An Entire Line Up Of Performance End Mills Designed For Extend Tool Life.

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle35

Helix styleMedium

Length of cut (mm)5.00mm

Length typeStandard

Manufacturers catalog numberHP421-0591-BN

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter0.0591

Mill diameter tolerance+0.000/-0.038 mm

Neck length (mm)0.00

Nose radius (mm)0.75

Number of flutes2

Overall length (mm)39.00mm

Reach length (mm)5.00

Secondary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter (mm)3.00mm

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
