0.3150" 5-Flute Solid Carbide Square End Mill, TiAlN - OSG HP455-3150

OSG

0.3150" 5-Flute Solid Carbide Square End Mill, TiAlN - OSG HP455-3150

MFR# HP455-3150Series HP455

$50.58List $64.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingTiAlN

Description

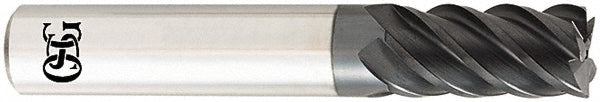

The OSG HP455-3150 is a 0.3150 5-flute Solid Carbide square end mill. 0.8268 length of cut. Series HP455.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut0.8268
Length of cut range0.8000 - 1.0000
Length typeRegular
Mill diameter0.3150
Number of flutes5
Overall length (mm)64.00
Shank diameter (mm)8.00
Variable helixNo
Variable indexNo
