OSG

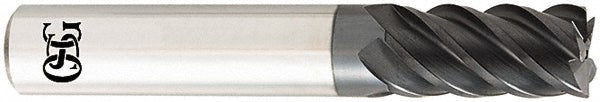

0.1181" 3-Flute Solid Carbide Square End Mill, TiAlN - OSG HP460-1181

MFR# HP460-1181Series HP460

$29.85List $38.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingTiAlN

Description

The OSG HP460-1181 is a 0.1181 3-flute Solid Carbide (Micrograin) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 0.4724 length of cut. Series HP460.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coating finish familyTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle60

Length of cut0.4724

Length of cut range0.3000 - 0.5000

Length typeRegular

Material gradeMicrograin

Mill diameter0.1181

Number of flutes3

Overall length (mm)64.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Shank diameter0.2362

Single or double endSingle

System of measurementMetric

Variable helixNo

Variable indexNo
