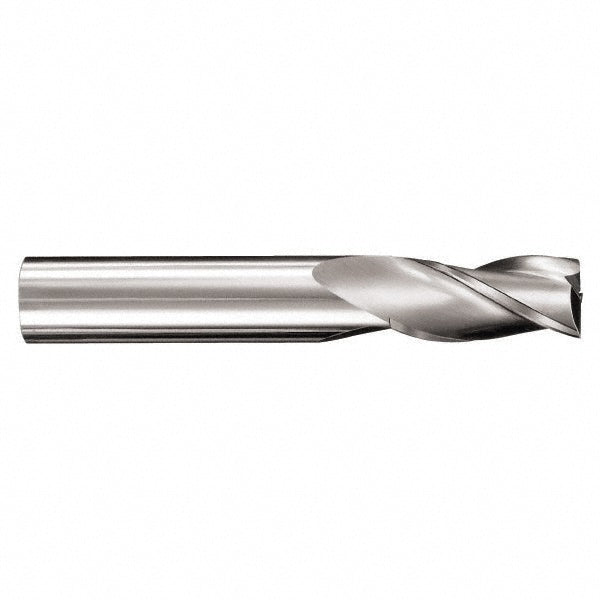

0.1181" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 48803

SGS

0.1181" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 48803

MFR# 48803Series 5M

$15.49List $19.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 48803 is a 0.1181 3-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.4724 length of cut. Series 5M.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.4724
Length of cut range0.3000 - 0.5000
Length typeRegular
Material gradeMicrograin
Mill diameter0.1181
Mill diameter tolerance+0.000/-0.050 mm
Number of flutes3
Overall length (mm)38
Shank diameter0.1181
Shank diameter tolerance+0.000/-0.006 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
