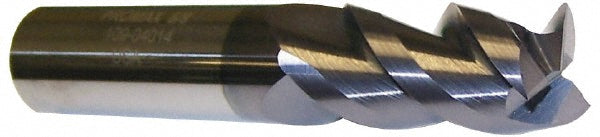

3/4" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-04814

ProMax

3/4" 3-Flute Solid Carbide Square End Mill, AlTiN - ProMax 109-04814

MFR# 109-04814Series 109

$169.53List $217.43 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes3
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 109-04814 is a 3/4 3-flute Solid Carbide (Micrograin) square end mill. 1-5/8 length of cut, 4 overall length. Series 109.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in3/4
Mill diameter tolerance+0.000/-0.002 in
Number of flutes3
Overall length in4
Shank diameter in3/4
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
