0.7500" 3-Flute Solid Carbide Single End Mill - GWS 120668

GWS

0.7500" 3-Flute Solid Carbide Single End Mill - GWS 120668

MFR# 120668Series 1015

$263.00List $337.31 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

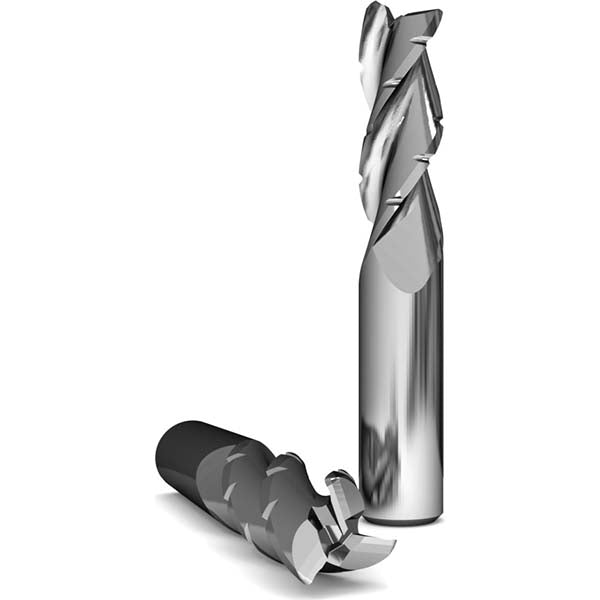

The GWS 120668 is a 0.7500 3-flute Solid Carbide (Submicron) single end mill. 1-5/8 length of cut. Series 1015.

Specifications

CentercuttingNo
ChipbreakerYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
End typeSingle
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle37
Length of cut in1-5/8
Length typeStandard
Material gradeSubmicron
Mill diameter0.7500
Mill diameter frac in3/4
Number of flutes3
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeSquare
Variable helixNo
