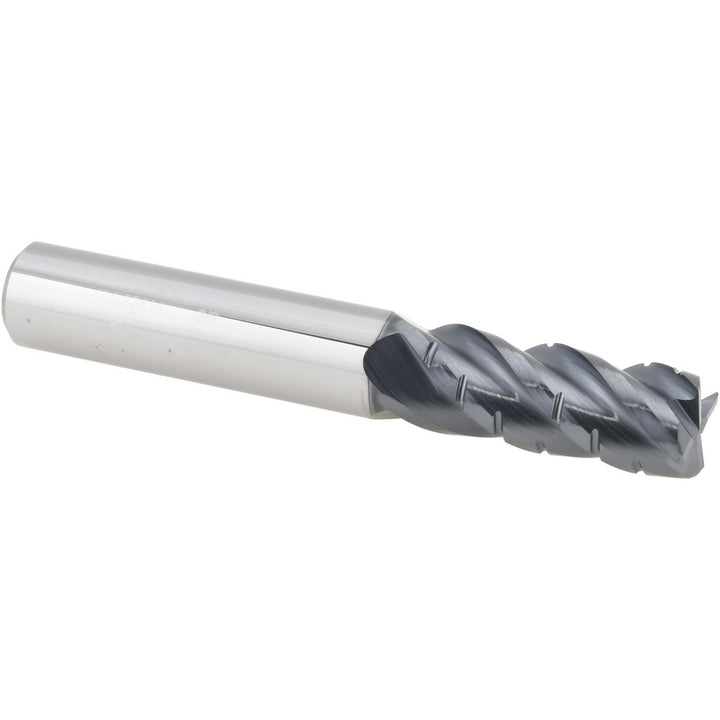

0.3750" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 191-32414

ProMax

0.3750" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 191-32414

MFR# 191-32414Series 191

$78.51List $100.69 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 191-32414 is a 0.3750 4-flute Solid Carbide (Micrograin) corner radius end mill with a AlTiN finish for longer tool life. 7/8 length of cut. Series 191.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishAlTiN
Corner radius0.0200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Helix angle40
Length of cut in7/8
Length typeRegular
Material gradeMicrograin
Maximum helix angle40
Mill diameter0.3750
Mill diameter frac in3/8
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes4
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeWeldon Flat
Single or double endSingle
