ProMax

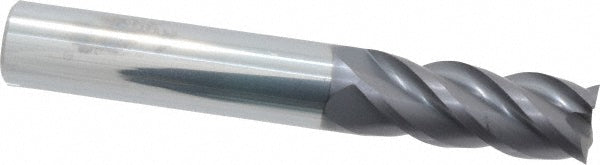

3/8" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 111-02414
MFR# 111-02414Series 111
$64.81List $81.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The ProMax 111-02414 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. Suited for high temperature alloy, stainless steel, steel. 7/8 length of cut, 2-1/2 overall length. Series 111.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in7/8
Length of cut range0.8000 - 1.0000
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Primary workpiece materialHigh Temperature Alloy; Stainless Steel; Steel
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
