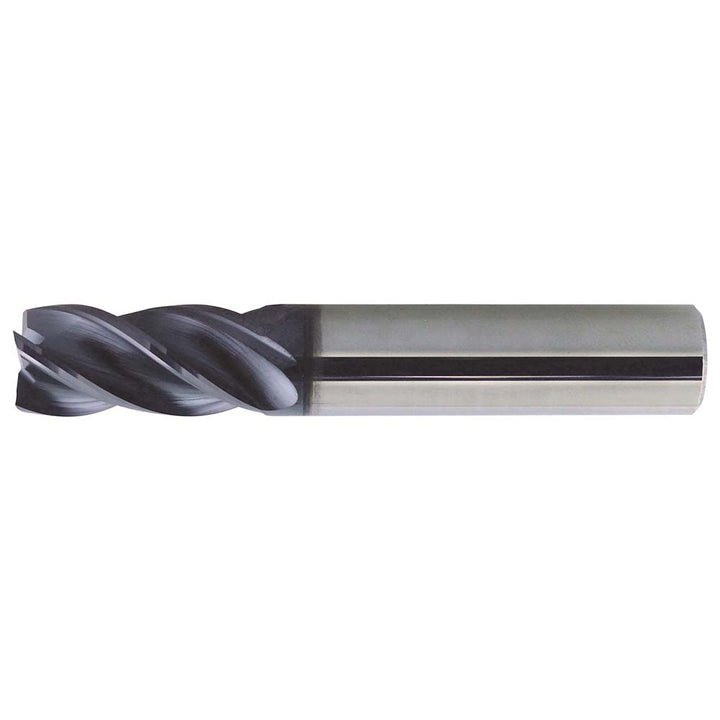

3/8" 4-Flute Solid Carbide Square End Mill - ProMax US007081

ProMax

3/8" 4-Flute Solid Carbide Square End Mill - ProMax US007081

MFR# US007081Series US007

$63.91List $81.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes4
MaterialSolid Carbide

Description

The ProMax US007081 is a 3/8 4-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 3 overall length. Series US007.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35/38
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeStandard
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3
Shank diameter in3/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixYes
Variable indexYes
