RobbJack
1/2" 2-Flute Solid Carbide Ball End Mill - RobbJack FM-204-16-BN
MFR# FM-204-16-BNSeries FM-204
$175.87List $188.80
Save 6%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description

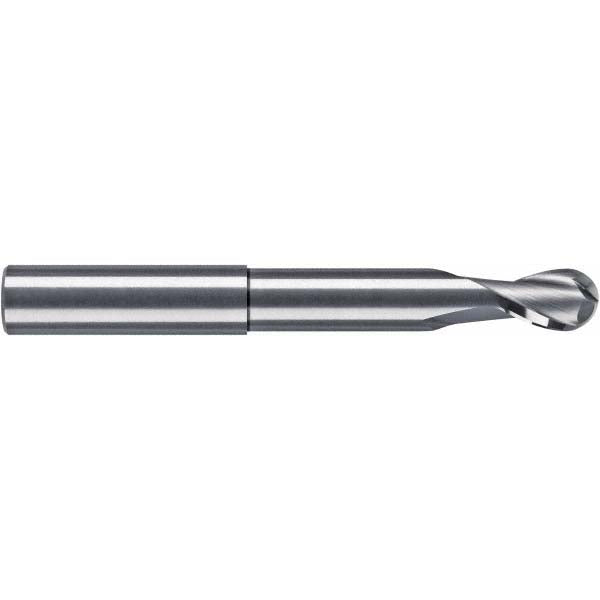

The RobbJack FM-204-16-BN is a 1/2 2-flute Solid Carbide ball end mill. Suited for non-ferrous metal. 1/2 length of cut, 5 overall length. Series FM-204.
Specifications
Additional information2 Flute Long Reach High Performance Carbide End Mill
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Helix styleHigh
Length of cut in1/2
Length typeExtended
Manufacturers catalog numberFM-204-16-BN
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance0.0010/ 0.0015 in
Neck diameter (mm)12.07
Neck length in1-5/8
Nose radius0.2500
Number of flutes2
Overall length in5
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialNon-Ferrous Metal
Reach length in2-1/8
Shank diameter in1/2
Shank diameter tolerance-0.0001/-0.0002 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
