Sandvik Coromant

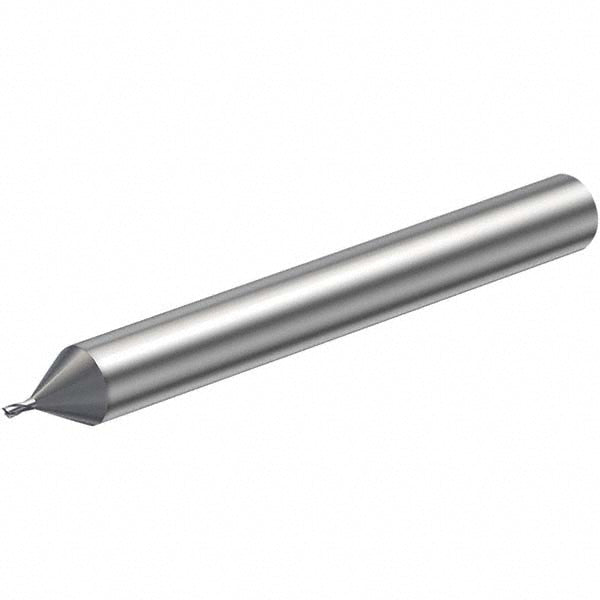

0.0394" 2-Flute Solid Carbide Square End Mill, TiAlN - Sandvik Coromant 5742948

MFR# 5742948Series CoroMill Plura

$94.31List $120.96 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes2

MaterialSolid Carbide

CoatingTiAlN

Description

The Sandvik Coromant 5742948 is a 0.0394 2-flute Solid Carbide (1620) square end mill with a TiAlN finish for longer tool life. 0.0394 length of cut. Series CoroMill Plura.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.0394

Length of cut range0.0000 - 0.1000

Length typeStub

Material grade1620

Mill diameter0.0394

Mill diameter toleranceH10

Neck length0.0591

Number of flutes2

Overall length (mm)54

Reach length0.0984

Shank diameter0.2362

Shank diameter toleranceh6

Variable helixNo

Variable indexNo
